How to Install a Retractable Tonneau Cover on a Ford Maverick (2021–2026, 4.5ft Bed)
Upgrading your truck with a retractable tonneau cover is one of the best ways to improve cargo security, weather protection, and overall functionality. If you own a Ford Maverick, this guide will walk you through what to expect during installation of a SYNETICUSA Retractable Tonneau Cover.
While this blog provides a helpful overview, we recommend following our step-by-step installation video for detailed instructions.
Ford Maverick Truck Bed Dimensions (Inner Bed Size)
Before installation, it’s important to understand your truck bed size to ensure proper fitment.
- Truck Model: Ford Maverick (2021–2026)
- Bed Length: 4.5 ft (54.4 inches approx.)
- Inner Bed Width (between wheel wells): ~42.6 inches
- Overall Inner Bed Width: ~53.3 inches
- Bed Depth: ~20.3 inches
The SYNETICUSA retractable tonneau cover is specifically designed to fit this 4.5ft bed configuration, ensuring a precise and secure installation.
Factory Deck Rails vs. No Deck Rails
The Ford Maverick may come with or without factory deck rail systems, and both setups are compatible.
- With factory deck rails: Installation will utilize the existing rail structure.
-
Without deck rails: The cover mounts directly onto the bed rails using provided clamps.
General Installation Overview
While the full installation process is demonstrated in our video, here’s a simplified overview of the key steps:
- Apply foam at the bulkhead (front of the bed)
- Slide the cover's end panel into the rails channel
- Adjust rails position to make sure rails are parallel
- Secure the cover using clamps
- Test sliding and locking operation
- Install and route drain tubes
This process is designed to be no-drill (in most cases) and can typically be completed with basic tools.
Drain Tube Routing Options
Proper drainage is essential for maintaining performance and preventing water buildup inside the canister. Below are two common installation options:
Option 1: Direct Drain (Recommended)
- Utilize two small holes on the plastic caps near the bulkhead area
- Route the front drain tubes directly through these holes
- For the rear tubes (near the tailgate), route them through the existing factory hole near the tailgate area
This method provides the most efficient and direct water drainage.
Option 2: No-Drill Alternative
If you prefer not to drill extra holes onto your truck:
- Use a 3/4-inch 90-degree PVC fitting (or similar solution)
- Connect the drain tubes and redirect water outward
- Customize routing based on your setup
This option offers flexibility while still maintaining proper drainage performance.

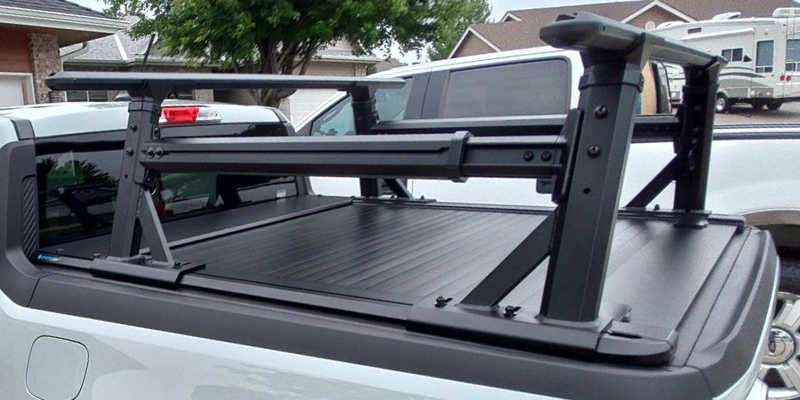

Pro Tip: Installing the R1 Ladder Rack with Maverick
When pairing your tonneau cover with the SYNETICUSA R1 Ladder Rack, there is no issue installing the rack feet on the aluminum end caps of the cover rails — the system is designed to support it.
However, for those who prefer a more precise fit and cleaner alignment, you may choose to position the rack so it lands directly on the main rail sections instead of the end caps.
To achieve this, a small adjustment can be made by removing a component of the ladder rack's side bar, allowing the feet to sit exactly where you want them.
 |
 |
This adjustment is completely optional and comes down to personal preference and setup style, giving you flexibility when installing your ladder rack.
Final Thoughts
Installing a SYNETICUSA retractable tonneau cover on your Ford Maverick (4.5ft bed) is a straightforward upgrade that delivers long-term value in security, protection, and versatility.
With proper installation and drainage setup, your cover will perform reliably in all weather conditions. Whether you’re using your Maverick for daily driving, work, or outdoor adventures, this upgrade helps you get the most out of your truck.
